Model specifications
Number of rungs / steps:10
Medium designation (80)

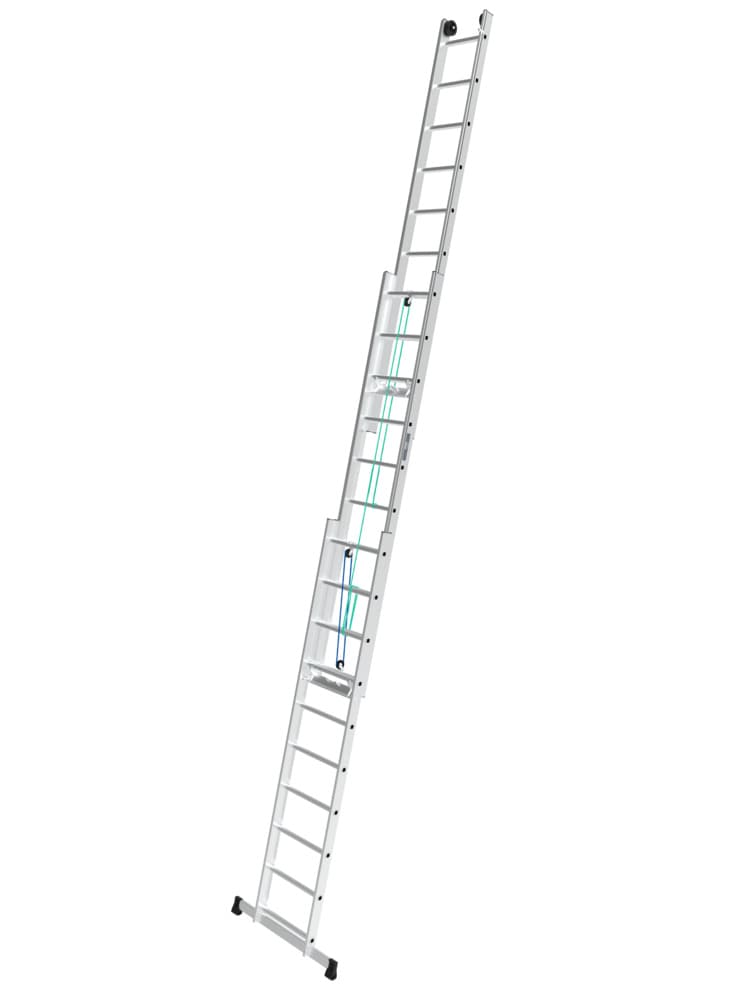

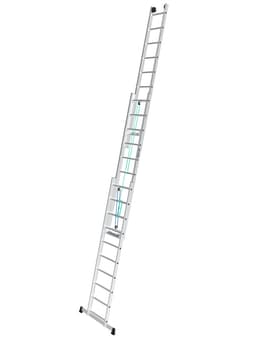

ALU ROPE-OPERATED LADDER 3x10-2.84m/6.20m-PRO
Reference
11233110
Barcode
3178740196684
Brand
Artub
Standards
EN 131
Decree
96-333
Guarantee
4 year
Class
Professional
Number of rungs / steps
10
Maximum access height
7.09 m
Main material
Aluminium
Overall width (without stab)
0.53 m
Overall width (with stab - max adjustment)
1.01 m
Thickness of folded product
19.48 m
Upright section
79,5/91/79,5
Weight
22.50 kg
Maximum load
150 kg
Type of floor
Flat surface
Made in france
Made in France
Details
The pro three-section rope-operated ladder is designed for work at great heights while guaranteeing comfort and safety.- Ultra-strong: The rungs are fixed by crimping and cannot be dismantled or distorted. 22mm wide rectangular uprights
- Stable: stabilizing base with non-slip footpads
- Ultra-robust: cast aluminium tipper with easy engagement and locking. UV-resistant rope for long-lasting durability.
- Comfortable: 30 x 30mm non-slip crimped square rungs.
- Easy access: distance between rungs 28cm
- Easy to deploy: extension wheels

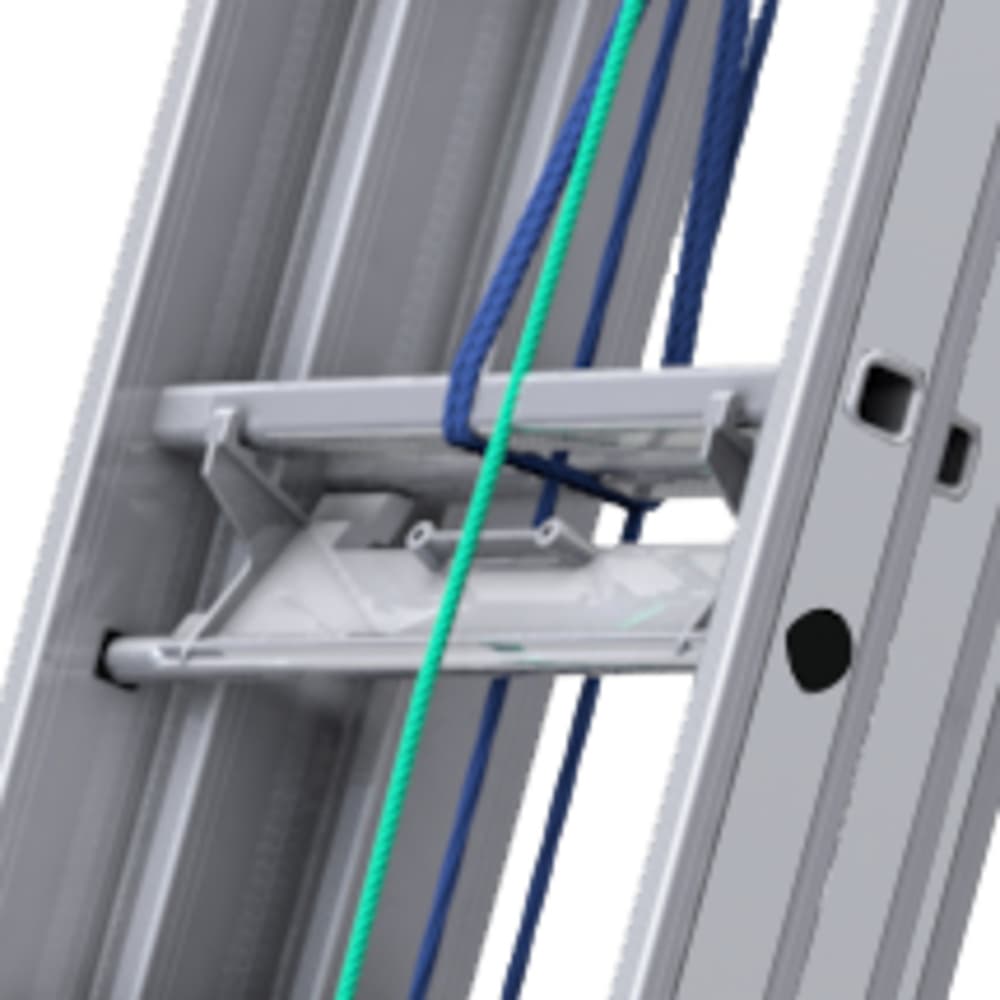

Cast aluminium locking pivot with simple locking system. Rope with anti-UV treatment for good resistance over time.

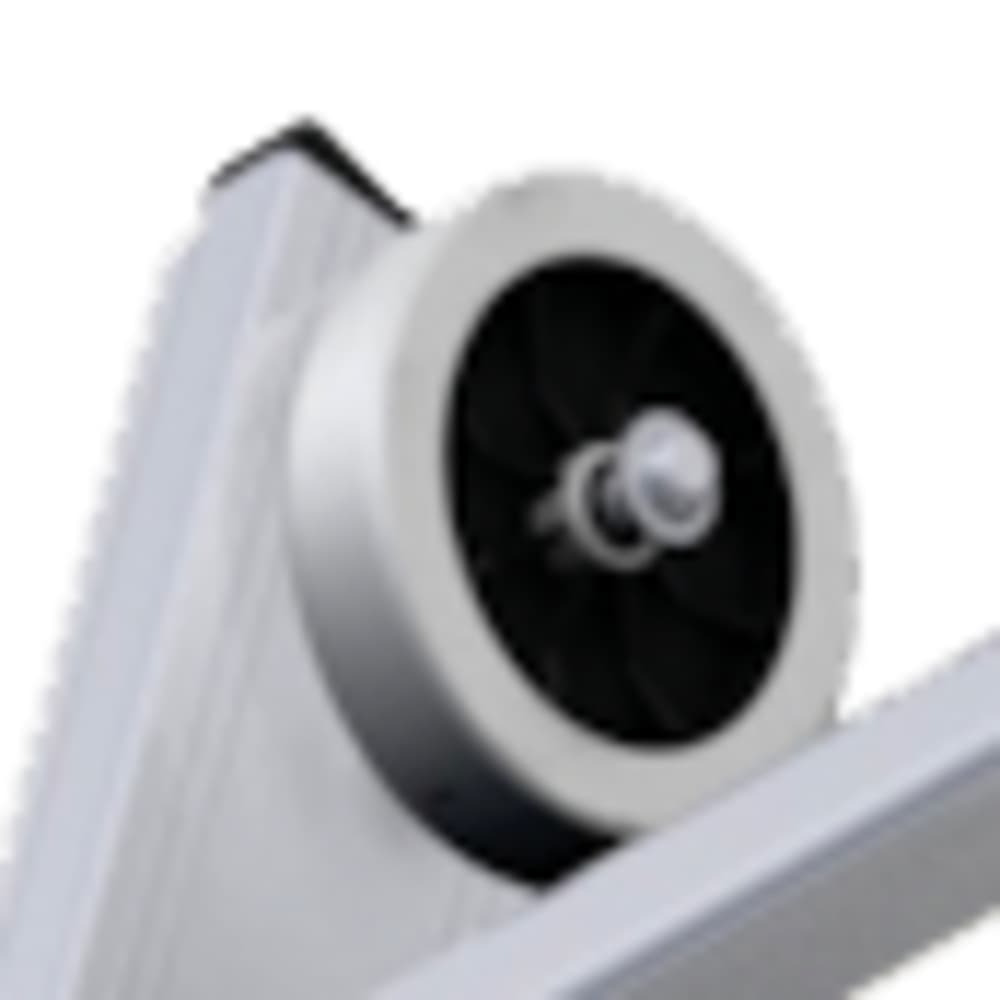

End castor wheels

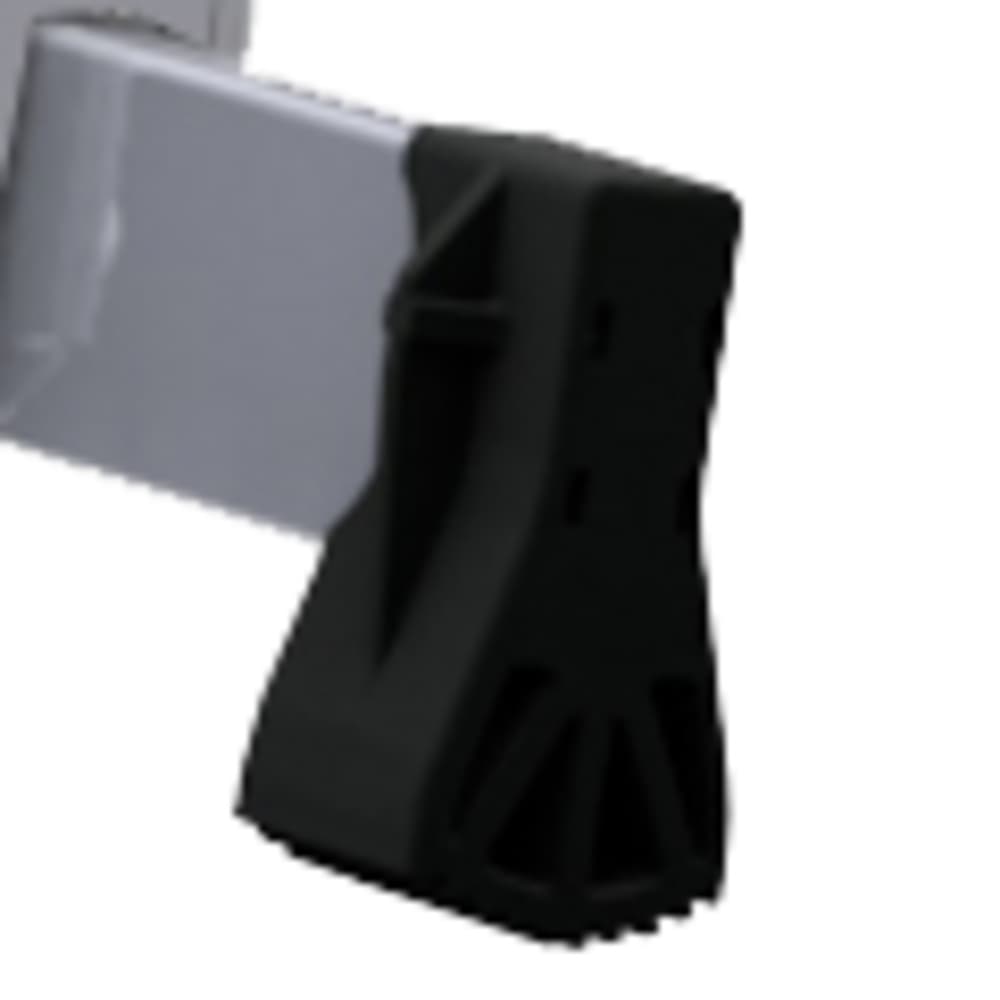

Stabiliser bar with anti-slip footpads

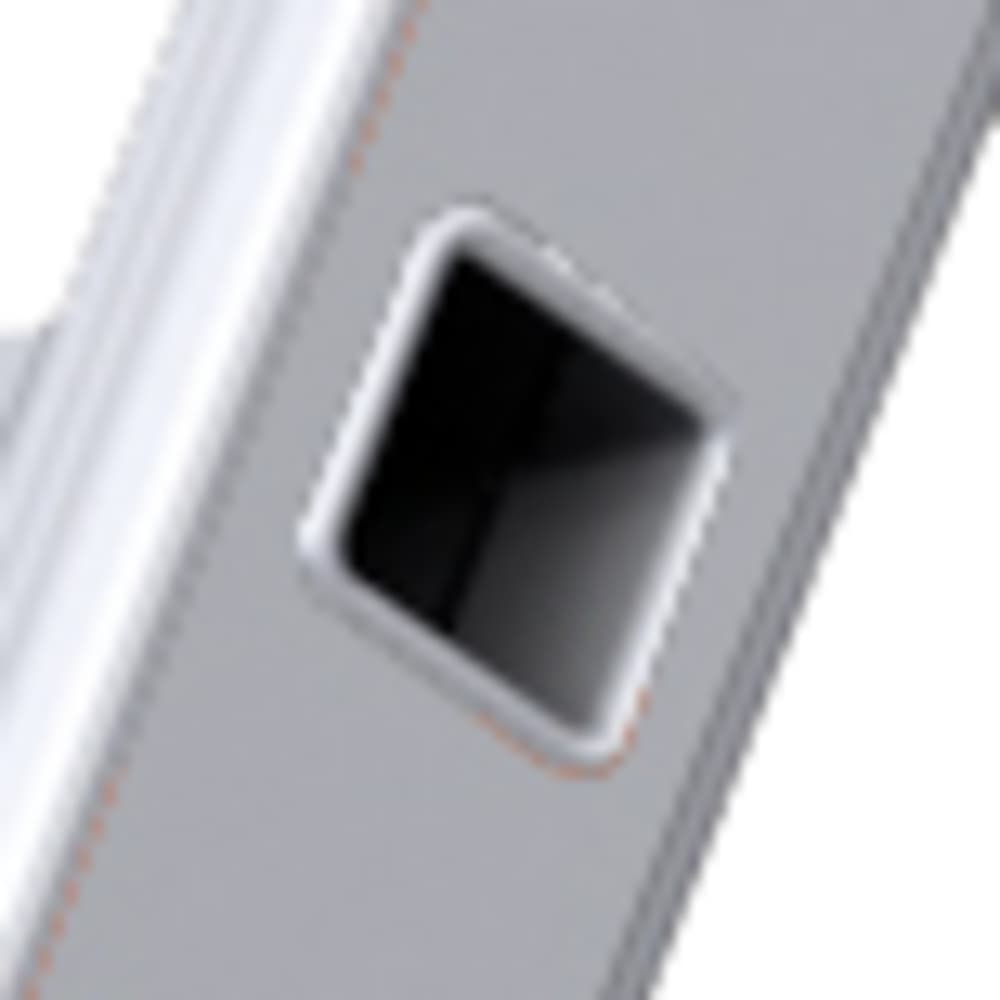

Rungs attached by crimping, non-separable and unalterable. Rectangular uprights with a width of 22 mm.

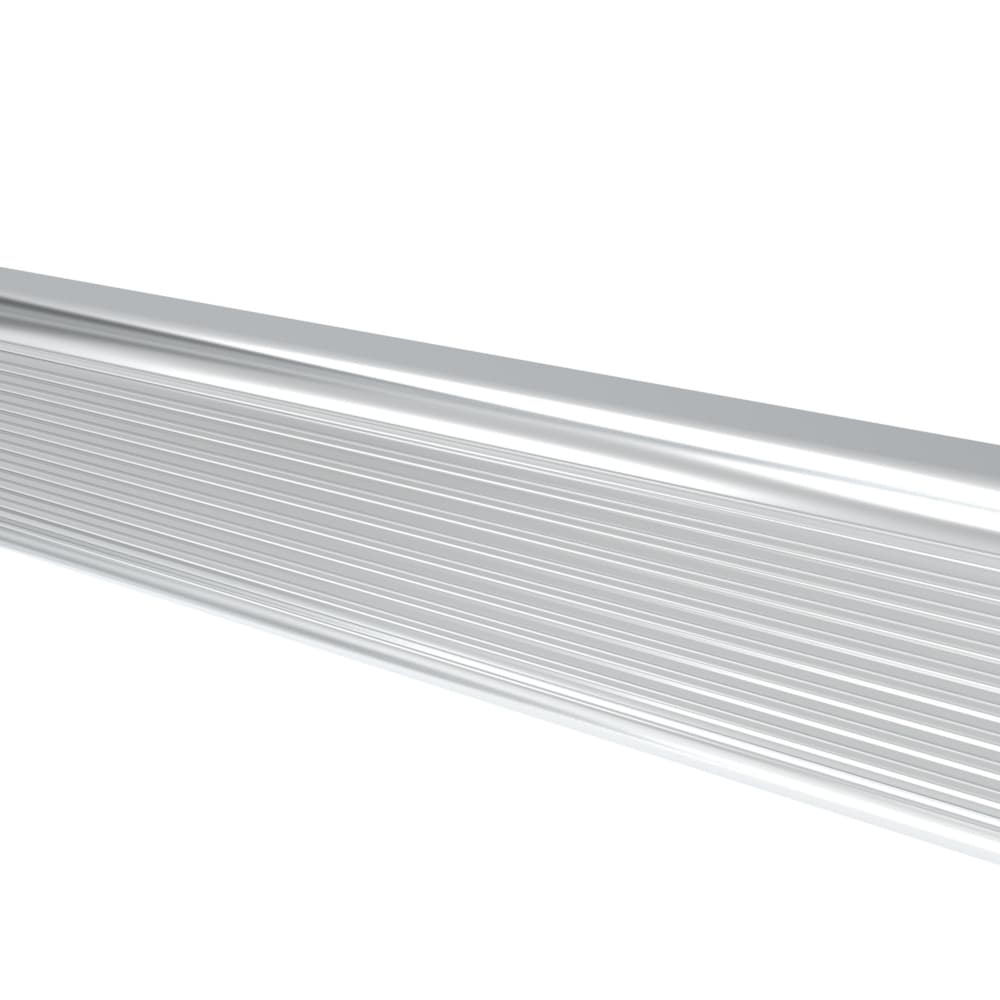

30 x 30mm square anti-slip grooved rungs

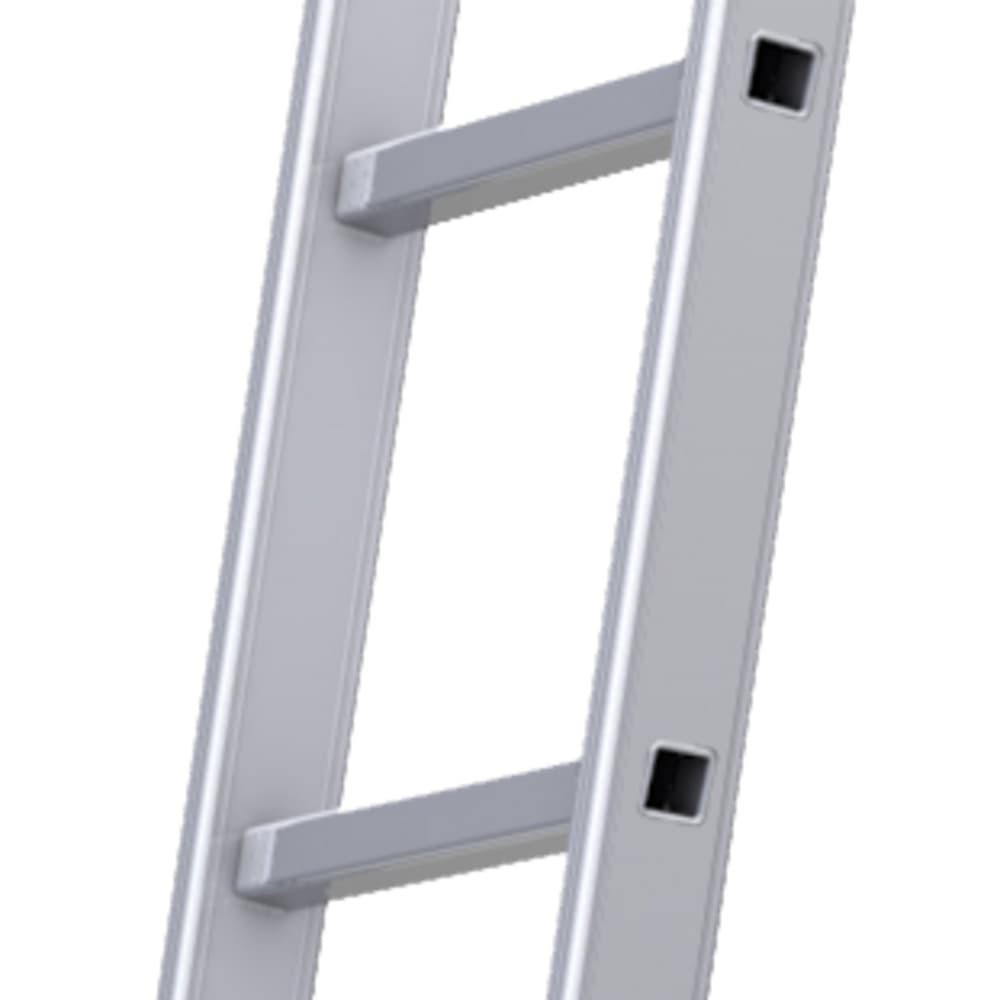

28cm spacing between rungs
